$3,699.00 Rideaway
110cc Electric Start

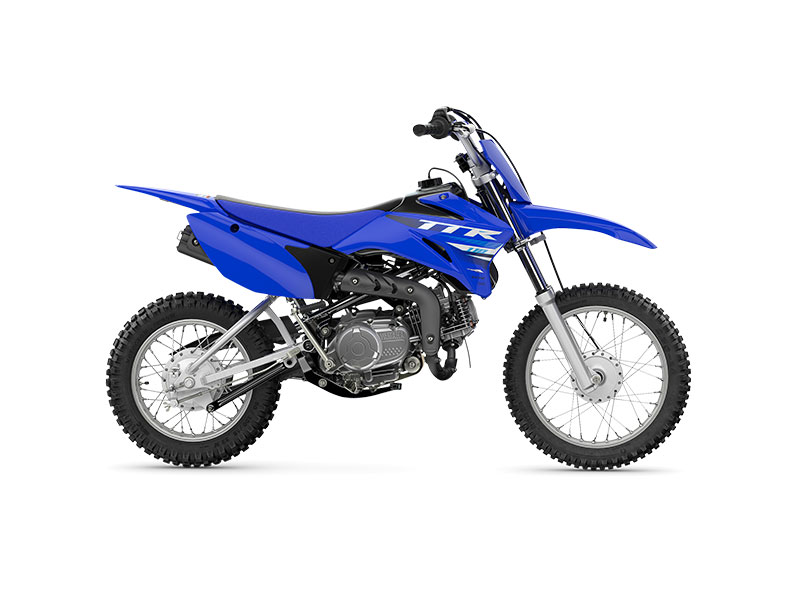

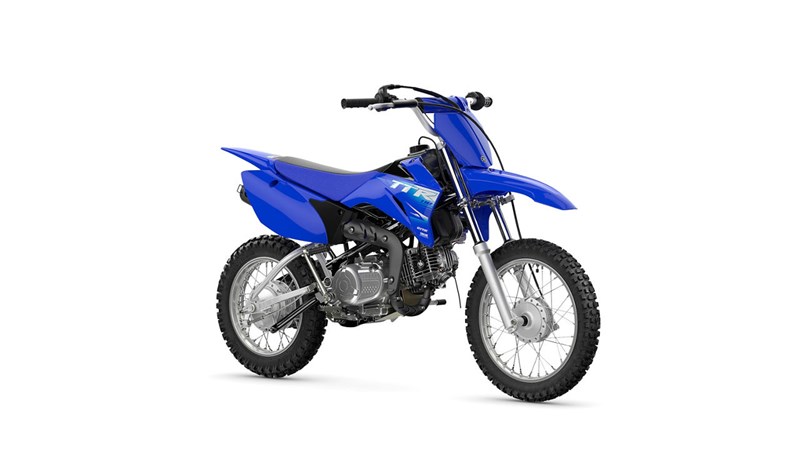

Yamaha's leading TT-R range includes the beautifully-styled TT-R110E, which is aimed at new riders as well as those graduating from the smaller TT-R50E.
Its radical racing-blue, motocross-style bodywork has been directly inspired by our MXGP-winning YZ race bikes. For easy steering and high levels of rider comfort, this good-looking youth bike features long-travel front and rear suspension.
New and experienced off-road riders will love the smooth and strong performance of the 110cc 4-stroke engine, and the 4-speed semi-automatic gearbox means that there is no clutch lever for riders to worry about.
| Colours | Team Yamaha Blue |
|---|---|
| Engine | Air-cooled, 4-stroke, SOHC |
| Displacement | 110.0 |
| Bore | 51.0 x 54.0 |
| Compression | 9.3 : 1 |
| Lubrication | Wet sump |
| Fuel Management | VM16 |
| Ignition | CDI |
| Starter System | Electric and Kick |
| Fuel Tank Capacity | 3.8 |
| Oil Capacity | 1 |
| Final Transmission | Chain |
| Transmission | Constant mesh 4-speed |
| Length | 1565 mm |
| Width | 680 mm |
| Height | 920 mm |
| Weight | 72 kg |
| Dry Weight | 68 kg |
| Seat Height | 670 mm |
| Wheelbase | 1080 mm |
| Clearance | 180 mm |
| Frame Type | Steel tube backbone |
| Suspension Front | Telescopic forks, 115mm travel |
| Suspension Rear | Swingarm, 110mm travel |
| Brakes Front | Drum |
| Brakes Rear | Drum |
| Tyres Front | 2.50-14 4PR Tube type |
| Tyres Rear | 3.00-12 4PR Tube type |
Features
Smooth-action drum brakes
For reliable stopping power, the TT-R110E has drum brakes at the front and rear, and their simple design makes for easy maintenance. Special off-road pattern tyres make this mid-sized youth bike a strong performer in the dirt, while the 14 inch front wheel and 12 inch rear wheel help to handle uneven terrain.
Long travel suspension
The TT-R110E is equipped with rugged suspension systems that are designed to ensure riding comfort and easy handling when riding off-road. At the front, the sturdy telescopic forks give 115 mm of wheel movement, while the single-shock monocross rear suspension offers 110 mm of smooth and progressive travel.
110cc 4-stroke engine
The TT-R110E's rugged and reliable 110cc 4-stroke engine has been designed for smooth and strong performance, making this mid-sized youth bike a joy to ride. And with its semi-automatic 4-speed gearbox, the TT-R110E is an ideal choice for new and experienced riders.
Rugged and lightweight
Check out the TT-R110E's bodywork and it's clear that the radical lines of this stylish 4-stroke have been inspired by our MXGP-winning YZ race bikes. Finished in our world-famous racing-blue colour scheme, the fenders and fuel tank panels are made from ultra-tough polypropylene for minimum weight and maximum strength.
Engine Brake Management
Control is everything when you're on the track, and the Engine Brake Management (EBM) system allows you to adjust engine braking force. Using data from various sensors, the EBM adjusts throttle opening, ignition timing and fuel injection volume to give you a choice of three engine braking modes to suit different riding situations.
MotoGP Inspired Winglets
Developed through extensive simulator and on-track testing, MotoGP-inspired carbon fibre winglets create additional downforce for exceptional chassis stability and added front-end feel when braking or cornering.
