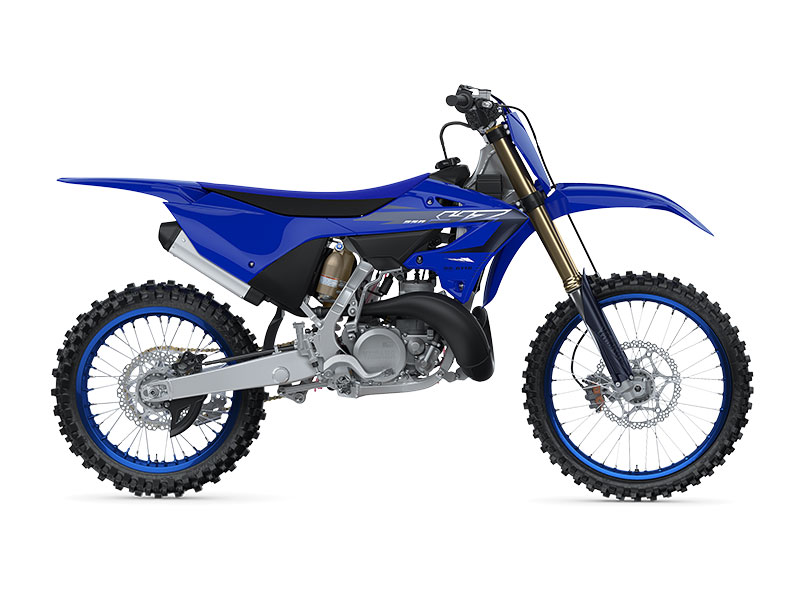

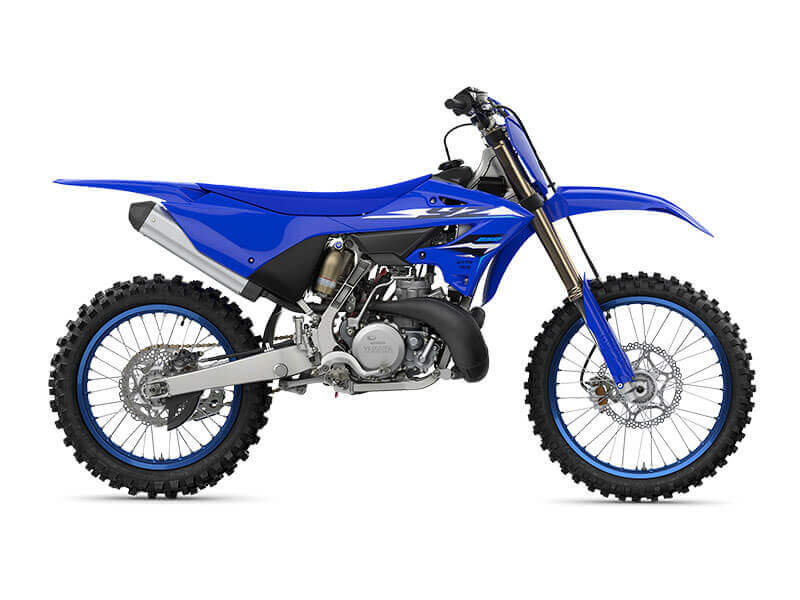

250cc Thoroughbred Racer
Yamaha’s race-tested YZ250 two-stroke is already known for its fast, powerful engine, plush suspension, class-leading handling and rider friendly character.
Its all-new bodywork improves the ergonomics for an even higher degree of control and agility, and the industry-leading KYB suspension features revised low speed damping for better handling, while braking performance is taken to the next level with a new front caliper. And the new higher efficiency air intake and revised exhaust system sharpens the power output of the explosive 250cc liquid-cooled YPVS engine, whereas the new more powerful front braking system and revised suspension damping help to cut lap times.
And its new duo-tone colour scheme and graphics are sharper than ever. YZ250 2-stroke: The legend lives on!
| Colours | Team Yamaha Blue |
|---|---|
| Engine | Liquid-cooled, 2-stroke, reed-valve with YPVS |
| Displacement | 249.0 |
| Bore | 66.4 x 72.0 |
| Compression | 8.9 - 10.6 : 1 |
| Lubrication | Premix |
| Fuel Management | PWK38S |
| Ignition | CDI |
| Starter System | Kick |
| Fuel Tank Capacity | 7 |
| Oil Capacity | N/A |
| Final Transmission | Chain |
| Transmission | Constant mesh 5-speed |
| Length | 2185 mm |
| Width | 825 mm |
| Height | 1290 mm |
| Weight | 103 kg |
| Dry Weight | kg |
| Seat Height | 975 mm |
| Wheelbase | 1485 mm |
| Clearance | 360 mm |
| Frame Type | Aluminium controlled filled semi double cradle |
| Suspension Front | Telescopic forks, 300mm travel |
| Suspension Rear | Swingarm (link suspension), 315mm travel |
| Brakes Front | Hydraulic single disc, 270mm |
| Brakes Rear | Hydraulic single disc, 240mm |
| Tyres Front | 80/100-21 Dunlop Geomax MX33F |
| Tyres Rear | 110/90-19 Dunlop Geomax MX33 |
