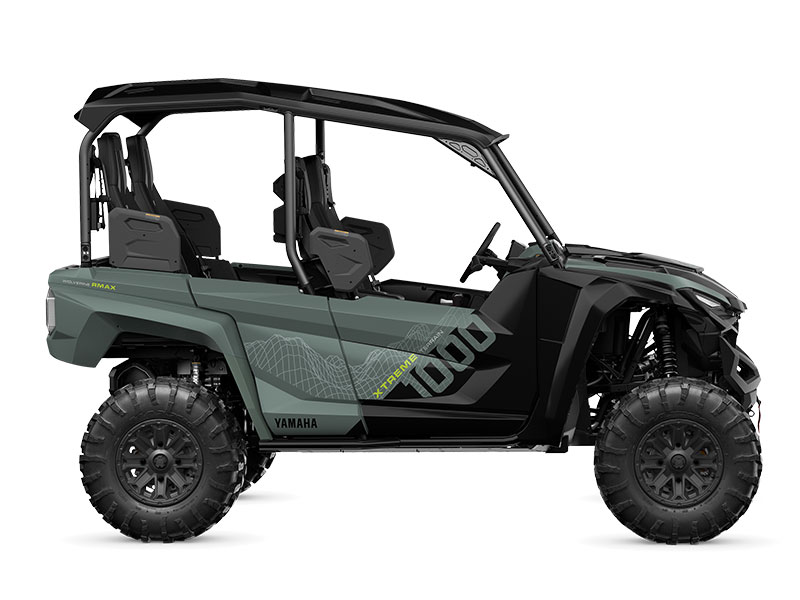

$38,999.00 Rideaway
4 Seater Compact
This incredible four-seat powerhouse is designed to venture into terrain you never thought possible – with automotive-style comfort and confidence-boosting control.
Smooth power is produced by the class-leading 999cc twin engine and push-button D-mode control with three drive positions – Sport, Trail and Crawl. The plush ride comes courtesy of long travel, high-performance Fox 2.0 QS3 shocks. Automotive-style luxuries will be familiar to car drivers while XT-R paint, a factory-fitted Warn winch, colour-matched wheels and aggressive Maxxis tyres combine to offer a unique, sophisticated ride.
RMAX 4 conquers the toughest terrain in comfort.
Smooth power is produced by the class-leading 999cc twin engine and push-button D-mode control with three drive positions – Sport, Trail and Crawl. The plush ride comes courtesy of long travel, high-performance Fox 2.0 QS3 shocks. Automotive-style luxuries will be familiar to car drivers while XT-R paint, a factory-fitted Warn winch, colour-matched wheels and aggressive Maxxis tyres combine to offer a unique, sophisticated ride.
RMAX 4 conquers the toughest terrain in comfort.
| Colours | Moss Grey Tactical Black |
|---|---|
| Engine | Liquid-cooled, 4-stroke, DOHC, parallel twin |
| Displacement | 999.0 |
| Bore | 93.0 x 73.5 |
| Compression | 11.2 : 1 |
| Lubrication | Dry sump |
| Fuel Management | Fuel Injection |
| Ignition | TCI |
| Starter System | Electric |
| Fuel Tank Capacity | 34.8 |
| Oil Capacity | |
| Final Transmission | On-Command 3-way locking differential; 2WD, 4WD, full diff-lock 4WD |
| Transmission | Ultramatic® V-belt, On-Command® 2WD, 4WD, 4WD with Diff-lock |
| Length | 3255 mm |
| Width | 1677 mm |
| Height | 2064 mm |
| Weight | 936 kg |
| Dry Weight | kg |
| Seat Height | mm |
| Wheelbase | 2290 mm |
| Clearance | 310 mm |
| Frame Type | Steel tube |
| Suspension Front | Independent double wishbone w/anti-sway bar, FOX QS3 piggyback shocks; 360mm travel |
| Suspension Rear | Independent double wishbone w/anti-sway bar, FOX QS3 piggyback shocks; 338mm travel |
| Brakes Front | Hydraulic dual discs |
| Brakes Rear | Hydraulic dual discs |

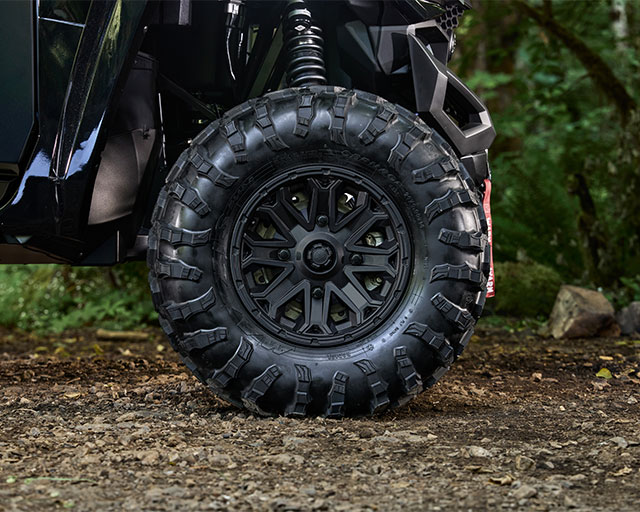

| Tyres Front | 29 x 9.00R-14 Maxxis Carnage |
| Tyres Rear | 29 x 11.00R-14 Maxxis Carnage |
Features
Premium Front Bumper
A multi-piece front bumper gives the Wolverine RMAX 1000 XT-R a stylish look. With two welded steel trailering tie-down points, factory-installed WARN® VRX 4500lb winch, accessory brush guard, and accessory pod light-mounting brackets, you'll confidently be able to take on the toughest terrain.
Powerful 999cc Parallel Twin Engine
The Wolverine RMAX 1000 XT-R delivers class-leading power and smooth performance, thanks to its powerful 999cc, DOHC, eight-valve, parallel twin engine with an aggressive 8,500 rpm redline and legendary Yamaha durability.

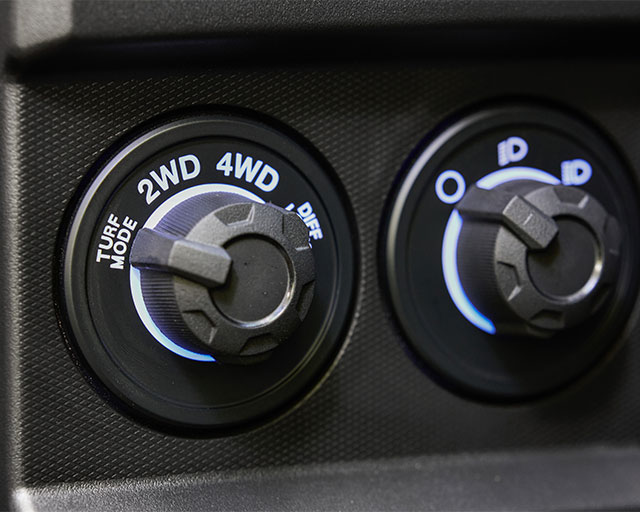

On-Command Four-Wheel Drive System
The On-Command® four-wheel drive system includes Turf Mode which unlocks the rear differential for a tighter turning radius and minimal turf damage, ideal for preserving your grass during household chores or any time you find yourself on delicate turf. The updated front differential also offers quicker locking engagement and disengagement.
Advanced FOX 2.0 QS3 Suspension
The advanced and heavy-duty suspension is designed to provide maximum articulation in low speed situations and a balanced feeling when trail riding. Wide-arc A-arms paired with high performance long travel FOX 2.0 QS3 shocks provide incredible bottoming resistance with smooth high speed damping. These units can be switched between three custom positions tool-free to enhance comfort during relaxed driving, increase damping for normal trail riding and maximise damping during sport driving.
Selectable Electric Power Steering
The Wolverine RMAX4 1000 XT-R Compact's class-leading selectable EPS system that allows drivers to select between three different steering modes to match driving preference via a dash-mounted switch. HIGH mode offers more assistance, best for low-speed maneuvers and relaxed riding. STANDARD mode is a great balance of light steering and positive feedback for trail riding. And LOW mode provides less assist for greater feedback and a sportier feel that’s perfect for higher speed riding. There’s also a differential lock setting that offers maximum steering assist when the front differential lock is engaged.
Cargo Flexibility
The Wolverine RMAX4 1000 XT-R Compact is one of the most versatile machines in the two-row side-by-side market. In addition to its ability to comfortably seat up to four adults, including cargo, the Wolverine RMAX4 1000 XT-R Compact features an ingenious storage system for cargo flexibility. By folding and sliding the rear seats forward, the rear area expands and securely transports up to 272kg of cargo with its multiple steel tie-down points. The Wolverine RMAX4 1000 XT-R Compact also features a built in 2-inch receiver to tow a full 907kg when needed.
Premium MTX Audio System
A premium MTX Audio System comes standard on the Wolverine RMAX4 1000 XT-R Compact, providing exceptional audio quality, deeper bass and clearer vocals, along with three preset audio tunes. Recessed door speakers with smooth speaker grills improve passenger leg comfort.
Automotive-Inspired Cockpit
From charging your electronics with a powered USB port to seeing what's behind with the easily adjustable centre-mount mirror, ride in comfort and take on the terrain as long as you'd like.
Yamaha Adventure Pro System
Yamaha Adventure Pro System takes your journey to the next level with a seven-inch full-color display neatly integrated into the dash. This advanced adventure tool provides connectivity via Bluetooth or USB, and is loaded with features including navigation compatibility, phone and audio controls, GPS mapping and PIN-lockable geo-fencing, customisable home screen, drive-mode screen, and a rearview camera accessory option, all offering Yamaha owners added comfort, capability and confidence out on the trail.
Comfortable Secure Seats
Premium cut-and-sew comfort seats offer exceptional seating position for a planted feel and reduced fatigue, which is essential for occupants to enjoy the driving experience. The Wolverine RMAX4 1000 XT-R keeps occupants comfortable and secure with its wide bolstering, additional leg room for larger occupants and easy-to-adjust six-position seat belts for each seat.
Max Comfort for Driver and Passengers
Driver and passenger comfort features include a tilt steering wheel with 17 degrees of adjustment, and an adjustable passenger handhold with a robust design that won't get clogged with mud or dirt. Furthering driver comfort, the throttle and brake pedals have been optimised for comfort, while a strategically-designed brake master cylinder cover helps keep the mud and water off the driver's feet.
Automotive-Style Soft Touchpoints
Featuring the best automotive-style driver and passenger soft touchpoints in its class, the Wolverine RMAX4 1000 XT-R provides a more relaxed experience even over rough terrain. The steering wheel and passenger handhold have the top shape and soft-touch in the market while providing a quality feel way beyond the competitors' hard plastic. Additional comfort points are strategically placed in locations where knees and arms frequently contact interior components.
Maximum Storage
Large storage optimised to provide protection from the elements, the Wolverine RMAX 1000 XT-R features a sealed 2.7L centre console, a 5.5L sealed glove box, and centre console cubbies. Both occupants can also quickly access their belongings with driver and passenger storage shelves containing secure rubber mats to keep items in place and two easy-to-reach cup holders.
Proven Transmission
The Proven Off-Road technology of Yamaha’s Ultramatic® system is unmatched in the industry. The CVT system utilises a centrifugal wet clutch purpose-built to withstand the power from the 999cc engine, and a constant tension belt system for tackling obstacles in high rev range without fear of damaging the belt. When more torque is needed, the low gear is perfect for challenging conditions. The robust CVT system means less time switching gears and more fun taking on any terrain.
Best Braking System
The one-way sprag clutch offers natural and predictable engine braking at all speeds. Maximising traction and reducing wear on the vehicle's brake system helps descend hills with confidence. The all-wheel engine braking combined with the Wolverine RMAX 1000 XT-R brake calipers and rotors results in excellent feel and feedback for confidence-inspiring stopping power. With 255mm rotors and 32mm dual piston calipers up front and 244.5mm rotors and 27mm dual piston calipers in the rear, the perfectly-matched master cylinder and steel braided brake lines bring the RMAX to a stop, even in the toughest of terrains.
Advanced LED Lights
Stealthy, advanced LED headlights with lo and hi beam provide wide coverage for confidence-inspiring nighttime driving. LED marker lights showcase the XT-R's unique, sleek style while integrated LED taillight, brake light and reverse light keep you visible on the trail and enhance visibility when reversing.
Speed Management System
The Wolverine RMAX4 is equipped with Yamaha's Speed Management System which uses the YCC-T to limit the vehicle to a top speed of 40 kph without sacrificing the full power of the 999cc engine. Speed is governed by a removeable key which makes the system ideal for work sites or other special operating conditions.
Legendary Durability
Yamaha's proven durability is highlighted by the durable surface treatments and carbon steel construction of the front differential and rear gear case. It is can also be seen in the large 62mm front and 72mm rear DAC (Double Angular Contact) wheel bearings, forged sway bar links, wide pitch A-arms and single stamped A-arms, and large vehicle-specific ball joints.
Built Real World Tough
Like all of Yamaha's Side-by-Sides and full-size ATVs, the Wolverine RMAX 1000 XT-R is assembled with pride in the USA at Yamaha's state-of-the-art factory in Newnan, Georgia. This is one of the reasons that Yamaha Motor Australia specifies a three year factory warranty on RMAX and all other four-wheeled utility vehicles.
