Was $14,250 Now $11,750
Start Gate Awaits
WINNING PERFORMANCE

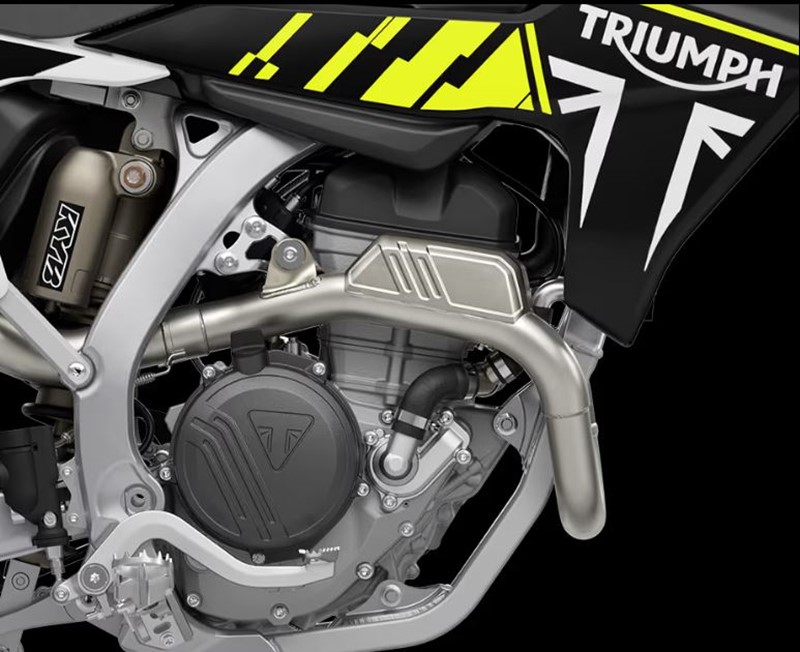

All-New, All-Triumph Competition Single. Lightweight, powerful with an ultra-compact mass-optimised design and 5-speed gearbox.
OPTIMISED FOR THE WIN

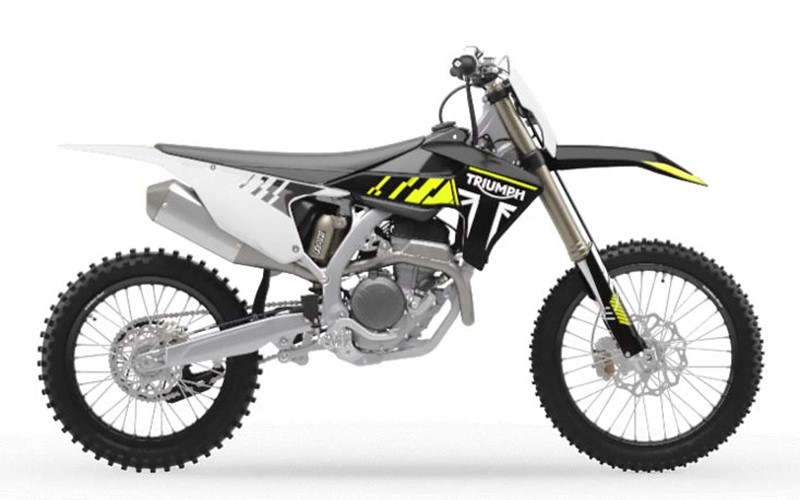

The all-new TF 250-X combines an all-new lightweight chassis, best-in-class production suspension, brakes and new ultra-compact 250cc powertrain for maximum agility and control - delivering the ultimate lightweight MX package and class-leading power-to-weight ratio.
PODIUM READY
Slim, aggressive bodywork, designed for optimum rider manoeuvrability and a minimal, lightweight stance and presence. The TF 250-X is unmistakably a Triumph.
SPECIFICATION
Engine & Transmission
| Feature | Details |
|---|---|
| Type | Single Cylinder 4-Stroke DOHC |
| Capacity | 249.95 cc |
| Bore | 78 mm |
| Stroke | 52.3 mm |
| Compression | 14.4 |
| System | Dellorto Throttle Body, Athena EMS |
| Exhaust | Single Silencer |
| Final Drive | 13/48 |
| Clutch | Wet Multi-Plate Belleville Spring |
| Gearbox | 5 Speed |
| Feature | Details |
|---|---|
| Frame | Aluminium, Spine & Double Cradle |
| Swingarm | Aluminium Fabrication |
| Front Wheel | 21" x 1.6" |
| Rear Wheel | 19" x 1.85" |
| Front Tyre | 80/100 - 21 |
| Rear Tyre | 100/90 - 19 |
| Front Suspension | KYB 48mm Coil Spring Fork, Compression/Rebound Adjustment, 310mm Travel |
| Rear Suspension | KYB Coil, Compression Adjustment (H and L Speed), Rebound Adjustment, 305mm Travel |
| Front Brakes | Brembo Twin 24mm Piston, 260mm Disc |
| Rear Brakes | Brembo Single 26mm Piston, 220mm Disc |
| Instrument Display and Functions | Hour Meter, Multifunction Switch Cubes |
| Feature | Details |
|---|---|
| Width Handlebars | 836 mm |
| Height Without Mirror | 1270 mm |
| Seat Height | 960 mm |
| Wheelbase | 1492 mm |
| Rake | 27.4 º |
| Trail | 116 mm |
| Tank Capacity | 7 L |
| Wet Weight | 104 kg |
