Pure electric freedom with limitless terrain, power, and everyday rideability.

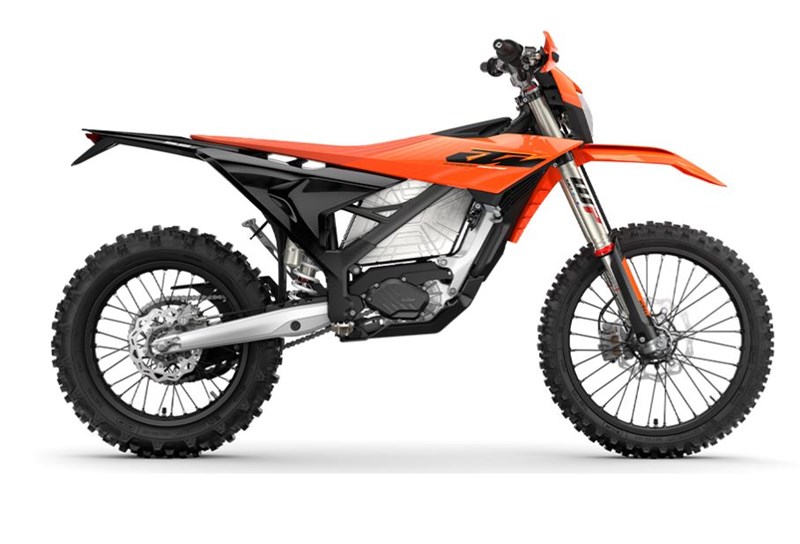

The all new KTM FREERIDE E brings a fresh surge of energy to electric offroad riding. Lightweight, agile, and near silent, it unlocks new possibilities on trails where traditional bikes can't go. Its powerful new drivetrain delivers instant torque, 19.2 kW peak power, and three adaptable ride modes, while the upgraded 5.5 kWh interchangeable battery offers up to three hours of riding freedom. A newly developed chassis, WP XACT/XPLOR suspension, and road legal capability make it equally ready for remote paths or everyday play.
Engine
Electric motor 50,4 V - PMSM
Max. power 19,2 kW
Torque 37.6 Nm
Max. motor speed 12000 rpm
Battery capacity 110 Ah
Charging time 100 % 480 min.
Rated output 8,3 kW
Secondary gear ratio 13:50
Traction battery MX50 Lithium-Ion Battery
Charger line voltage 90 - 265 V / 50 - 60 Hz
Charging power 660 W
Charging time 80 % 360 min.
Chassis
Frame design Chrome-molybdenum steel frame
Rear subframe design Aluminium / Polyamide Glass Fiber
Handlebar Pro Taper, Aluminium Ø 28/22 mm
Front brake Disc brake
Rear brake Disc brake
Front brake disc diameter 260 mm
Rear brake disc diameter 220 mm
Wheels 1.60 x 21"; 2.15 x 18"
Tyre width (front) 90
Tyre height (front) 90
Tyre width (rear) 120
Tyre height (rear) 90
Tyre dimensions (front/rear) 90/90; 120/90
Chain 520, Non-sealed
Steering head angle 65.6 °
Front wheel diameter 21 "
Rear wheel diameter 18 "
Front wheel width 1.60 "
Rear wheel width 2.15 "
Suspension
Front suspension WP XACT USD Fork
Rear suspension WP XPLOR shock absorber with PDS
Suspension travel (front) 250 mm
Suspension travel (rear) 240 mm
Steering head angle 65.6 °
Fork offset 20 mm
Dimensions
Seat height 910 mm
Weight (without fuel) 112 kg
Wheelbase Fehlende Variable
Ground clearance 360 mm
